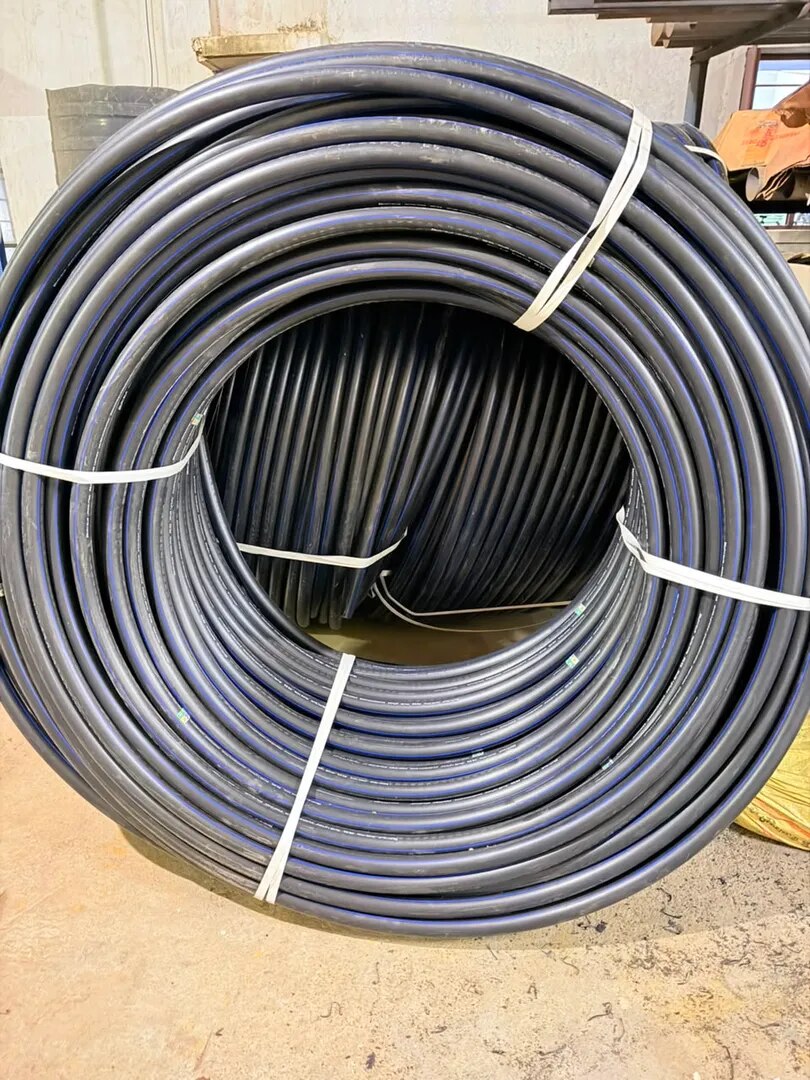

HDPE Hose Pipes (16mm to 110mm)

HDPE Pipes are manufactured by High-Density Polyethylene Polymers in all three grades.

PE 63, PE 80, PE 100 in accordance to IS: 4984-2016 standards.

Nominal Pressure from PN 2 to PN 20

PE Grades: PE 63, PE 80 & PE 100

Standard Dimension Ratio from SDR 41 to SDR 6

Sizes: 16 mm to 110 mm OD Applications: Water Supply, Agriculture and Irrigation

HDPE Hose Pipes (16 mm to 110 mm) are versatile, high-density polyethylene piping solutions designed for heavy-duty fluid transport, agricultural irrigation, and municipal water distribution networks.

Core Specifications & Standards

Material & Grades: Manufactured using high-density polyethylene polymer resins available in PE 63, PE 80, and PE 100 grades in accordance with IS 4984:2016 standards.

Size Range: Outer diameters range from 16 mm up to 110 mm, catering to diverse application scales from individual agricultural laterals to main water supply lines.

Pressure Ratings: Designed to handle nominal pressure ratings ranging from PN 2 to PN 20 (2 bar to 20 bar).

Dimension Ratios: Standard Dimension Ratios range from SDR 41 down to SDR 6, offering varying wall thicknesses based on working pressure requirements.

Primary Applications

Agricultural & Micro-Irrigation: Functions as mainlines, sub-mainlines, and distribution pipes for drip and sprinkler irrigation networks.

Potable Water Supply: Used in rural and urban water conveyance schemes for safe drinking water delivery.

Industrial & Effluent Disposal: Ideal for transporting industrial effluents, chemicals, and slurry due to superior corrosion resistance.

Infrastructure & Sewerage: Deployed in underground drainage, borewell piping, and cable ducting projects.

Key Advantages

High Impact & Crushing Strength: Resistant to external pressure, soil loads, and mechanical shocks.

Chemical & Corrosion Resistance: Non-corrosive, rust-proof, and impervious to aggressive soil minerals, fertilizers, and acidic/alkaline fluids.

Leak-Proof Jointing: Can be easily butt-welded or jointed using compression fittings to ensure seamless, leak-proof connections.

Flexibility & UV Resistance: Highly durable for above-ground and underground installations under extreme weather and sunlight exposure.
